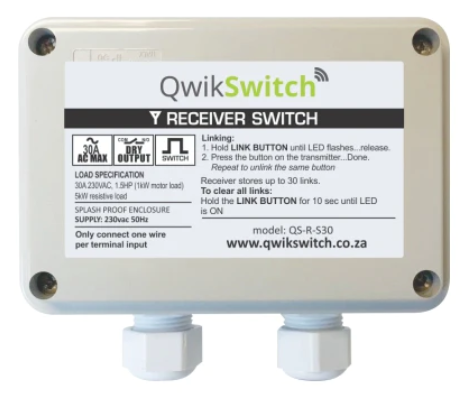

QwikSwitch 30A Relay Boxed

Features
• Used for Residential, Commercial and Industrial applications
• Used to switch any load On or Off
• This device is controllable from the WiFi Bridge (QS-WIFI-BRIDGE) remotely
- Turn on / off devices
- Device Status

• Ability to be set as a pulse output (200ms/400ms/600ms/800ms/1s/2s/5s)

Specifications
• Input supply - 220Vac, 50Hz
• Output - 220 Vac, 50Hz
• Load - 5Kw Resistive load (30A) or 1 Kw Inductive load (Motor) 1.5hp
• Form factor - enclosed housing - 90mm (h) x 130mm (W) x 160mm (L)
• IP52
• Radio frequency - 868MHz
• Range - 30m through walls and floors, 100m line of sight.
